MiataCage and LifeLine have teamed up to develop the best fire suppression system for your Spec MX-5. This kit is customized specifically for the Spec MX-5 with vehicle specific tubing lengths, nozzles, brackets and installation instructions.
This system comes with (3) engine bay nozzles and (2) interior nozzles.
Spec MX-5 Installation:
- (2) nozzles in the engine bay. One on each side of the motor,
- (2) nozzles in the interior. One on the dash below in front of the driver and (1) behind the driver facing forward.
- (1) nozzle in the trunk.
* See attached pictures for locations
The Novec™1230 Zero 360 range of car fire extinguishers are significantly smaller and lighter than the current generation of FIA certified foam systems, offering far better packaging within the confines of the modern competition vehicle. The Stored Pressure Electric System is an excellent option for the serious competitor. Electrically operated by the push of a button.
- FIA Homologated
- Ultra Small and light
- 2.25kg of 3M™ Novec™1230 liquid clean agent extinguishant
- Electronic Actuation
- Constant discharge in any orientation
- Excellent fire knock down and fire out capabilities
- Two year service cycle
- The choice of world championship winning constructors
The latest range of Lifeline range of Zero 360 car fire extinguishers are the result of extensive research and development. Novec™1230 Zero 360 represent a significant step forward in motorsport safety, convincingly passing the FIA tests conducted by the British Standards Institute and observed by the MSA.
This series of systems has been awarded FIA homologation number EX.042.17
Novec™1230 Zero 360 has moved the boundaries of motorsport car fire extinguishers. Using only the finest materials in both its construction and installation kit this system performed extremely well in the FIA tests for plumbed in fire systems which were witnessed by the British Standard Institute.

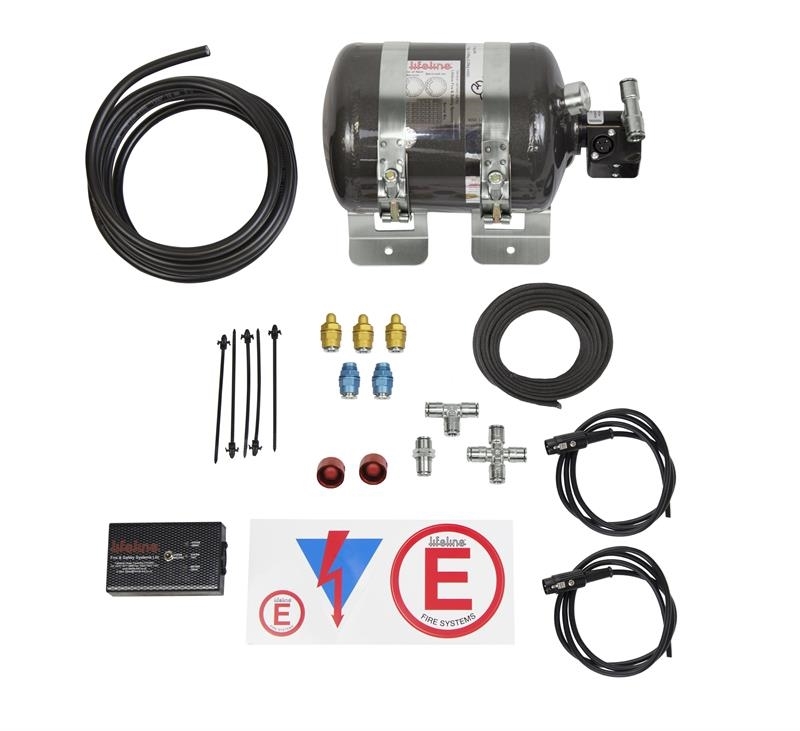

- Power Pack (x 1)
- Push Button (x 2)
- Plug & Lead (x 2)
- 8mm Tube (x 6m)
- Heatproof Over Braid (x 6m)
- Nozzle Straight Inlet (x 2)
- Double Z Nozzles (x 3)
- 8mm T Connector (x 1)
- Bulkhead Fitting (x 1)
- Pipe Clip (x 2 packs)
- Decal Pack (x 1)
- 8mm 4 way equal cross (x 1)
- Bracket and Straps (x 1)
**This product is labeled 2.25kg which is the typically accepted equivalent of a 5lbs system, but consult your series for confirmation.**
